Zinc Ingot Auto Loading Gantry

With the upgrading of industrial intelligence, automatic gantry robots have gradually replaced manual handling and loading operations in heavy industry factories. The zinc ingot automatic loading gantry robot developed by Truman is specially built for lead-zinc production lines, solving common industrial pain points including labor shortages, high labor costs, intense manual labor and harsh working environments. It effectively simplifies repetitive loading work, improves overall production efficiency and realizes intelligent upgrading of mineral processing workshops.

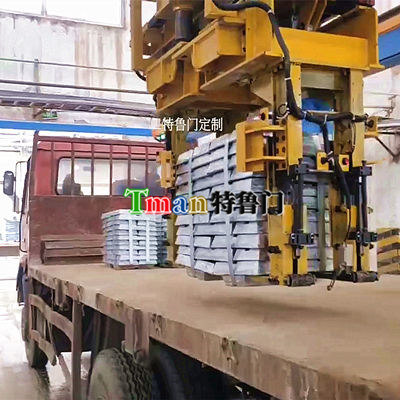

This professional automatic loading gantry robot is designed for automated loading and transportation of zinc ingot stacks. It can automatically grab zinc ingot stacks from chain conveyors and accurately place them on transport vehicles to achieve fully unmanned loading procedures. The equipment greatly reduces manual labor intensity, improves poor working conditions in lead-zinc workshops, and realizes standardized and intelligent loading operations for mineral production lines.

Adopting an optimized three-axis structural layout, the complete system consists of X-axis, Y-axis, Z-axis motion mechanisms, customized grippers, support columns and a complete electrical control system. The overall structure is compact, high-strength and rigid, ensuring stable operation during long-distance and heavy-load handling. It features smooth movement, high safety and high operational efficiency, serving as an ideal automatic loading device for modern mineral production lines.

The robot delivers outstanding heavy-load and large-stroke performance with complete industrial parameters. It achieves a maximum payload of 1500kg and a repeated positioning accuracy of ±5mm, meeting precise stacking and loading requirements. The X-axis stroke reaches 8m, Y-axis stroke 2.8m and Z-axis stroke 1.2m, covering a super-large working range. Both X-axis and Y-axis running speeds reach 1m/s, while the Z-axis speed is 0.5m/s, balancing high operating efficiency and stable loading quality.

Customized according to actual on-site working conditions, the zinc ingot automatic loading gantry robot greatly shortens loading and stacking cycle time, reduces enterprise labor and transportation costs. With stable performance and simple maintenance, it is a reliable customized automation solution for heavy-load mineral handling scenarios.
